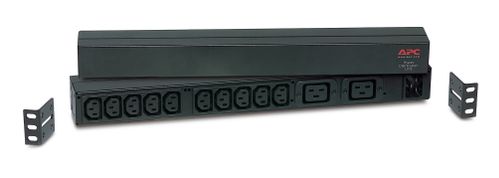

APC Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Forsiden UPS & Power Power Distribution APC Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19
For at se vore priser skal du være oprettet som kunde: Er du allerede oprettet som kunde skal du logge ind.
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)
APC Rack PDU, Basic,  1U, 16A, 208&230V,  (10)C13 & (2)C19 (AP9559)

APC Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Varenr.:
AP9559
EAN:
0731304123521

APC Basic Rack-Mount PDU - Power distribution strip ( rack-mountable ) - 12 output connector(s)
  • Type PDU
Beskrivelse

Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

AP9559

APC Basic Rack PDU , Input: 120V, 208V, 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet ( 2.5 meters ) , Output: 120V, 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19
Includes: Rack Mounting Brackets, User Manual

Features

19 inch Rack-Mountable
Low Cost Power Distribution
Vertical Mounting Capabilities

Output

Nominal Output Voltage
120V,208V,230V
Maximum Total Current Draw per Phase
16A
Output Connections
(10) IEC 320 C13
(2) IEC 320 C19
Always on Outlets
12
Overload Protection
Yes

Input

Nominal Input Voltage
120V,208V,230V
Input Frequency
50/60 Hz
Input Connections
IEC-320 C20
Cord Length
8.20 feet ( 2.50 meters)
Acceptable Input Voltage
90-250 VAC
Maximum Line Current per phase
16A
Maximum Input Current per phase
16A
Load Capacity
3680 VA

Physical

Net Weight
2.15 lbs. ( 0.98 kg)
Maximum Height
1.75 inches ( 44 mm)
Maximum Width
17.60 inches (447 mm)
Maximum depth
2.25 inches ( 57 mm)
Shipping Weight
5.20 lbs. ( 2.36 kg)
Shipping Height
6.50 inches (165 mm)
Shipping Width
19.00 inches (483 mm)
Shipping Depth
6.00 inches (152 mm)
Color
Black

Environmental

Operating Environment
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-13 - 149 °F (-25 - 65 °C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)

Conformance

Regulatory Approvals
CE,GOST,VDE
Standard Warranty
2 years repair or replace
